Bi-Folding Gates

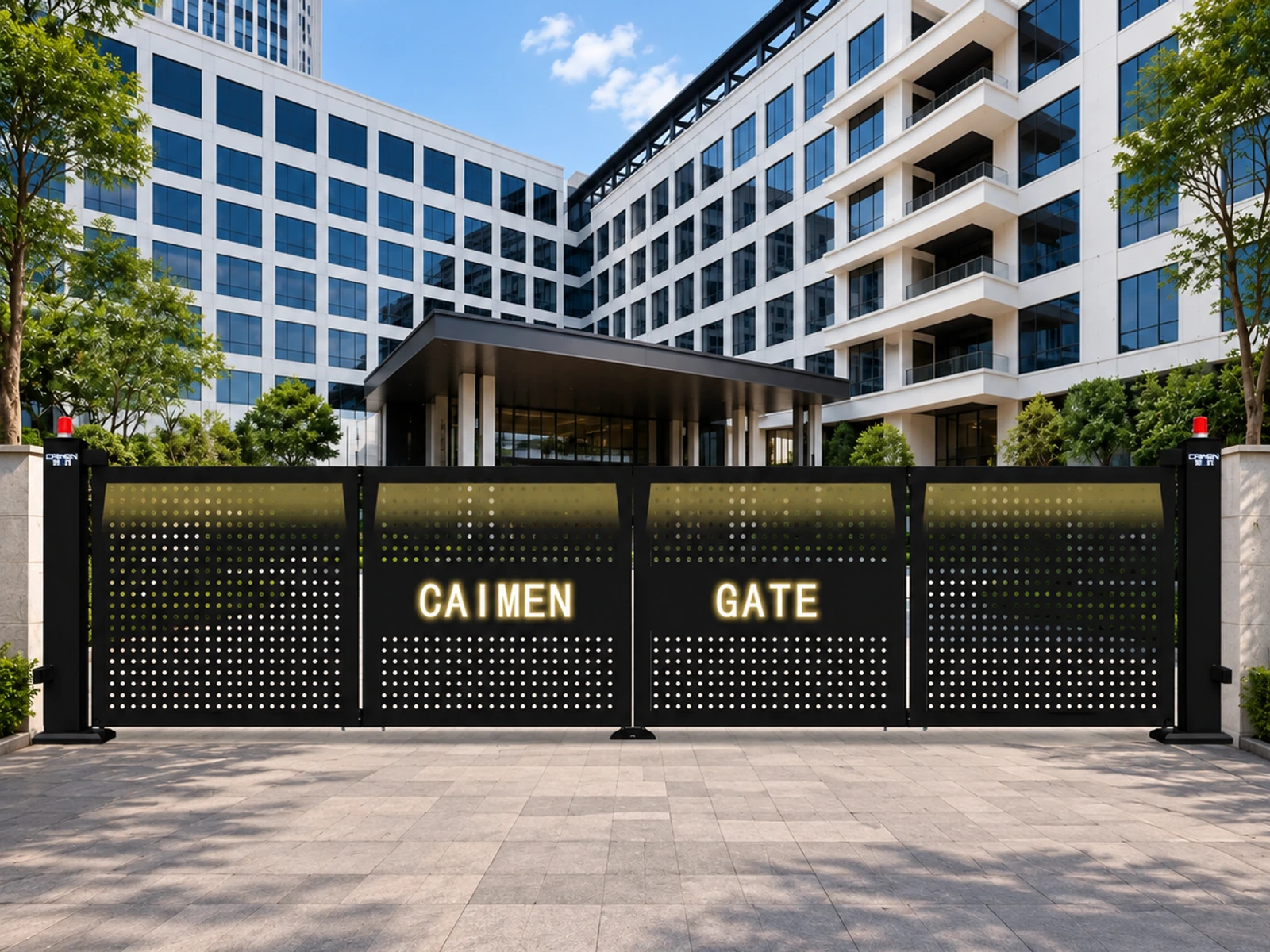

CAIMEN manufactures custom aluminum bi-folding gates for residential, commercial and industrial entrances. Linked gate panels fold beside the opening, reducing the space required by conventional full-length swing gates while providing automated vehicle access.
- Aluminum Construction — 6005-T5 and 6063-T6 aluminum components with an architectural powder-coated finish.
- Space-Efficient Folding — Linked gate panels fold into a compact arrangement beside the entrance.
- Custom Gate Design — Gate dimensions, infill styles, colours and finishes tailored to the property.
- Automatic Operation & Safety — Soft drive, infrared detection, emergency controls and compatible access systems.
The CAIMEN Advantage
Our engineering and production teams work together on gate structures, automation systems and project-specific manufacturing.
- 30+ Hardware R&D Professionals
- Engineering gate structures, mechanical components and automation hardware.
- 20+ Software R&D Professionals
- Developing control functions and software for intelligent entrance and parking systems.
- 200+ Production Personnel
- Supporting fabrication, assembly and product preparation across our manufacturing operations.
Engineered Aluminum Construction
We build our bi-folding gates with structural aluminum profiles and carefully selected hardware, bringing strength, corrosion resistance and architectural flexibility into one gate system.
- Structural Aluminum Profiles
- 6005-T5 aluminum is used for the drive housing, while 6063-T6 profiles form the main frame, inner frame and vertical members.
- Architectural Powder Coating
- AkzoNobel Interpon powder coating provides a consistent finish for outdoor use. We offer custom colours to match the building and surrounding fence.
- Custom Infill Designs
- Choose vertical tubes, perforated panels, solid privacy panels or louvred designs to achieve the appearance and visibility your entrance needs.
Compact Folding & Stable Support
Our bi-folding system combines linked gate leaves with upper and lower pivot supports, keeping the folding movement controlled throughout opening and closing.

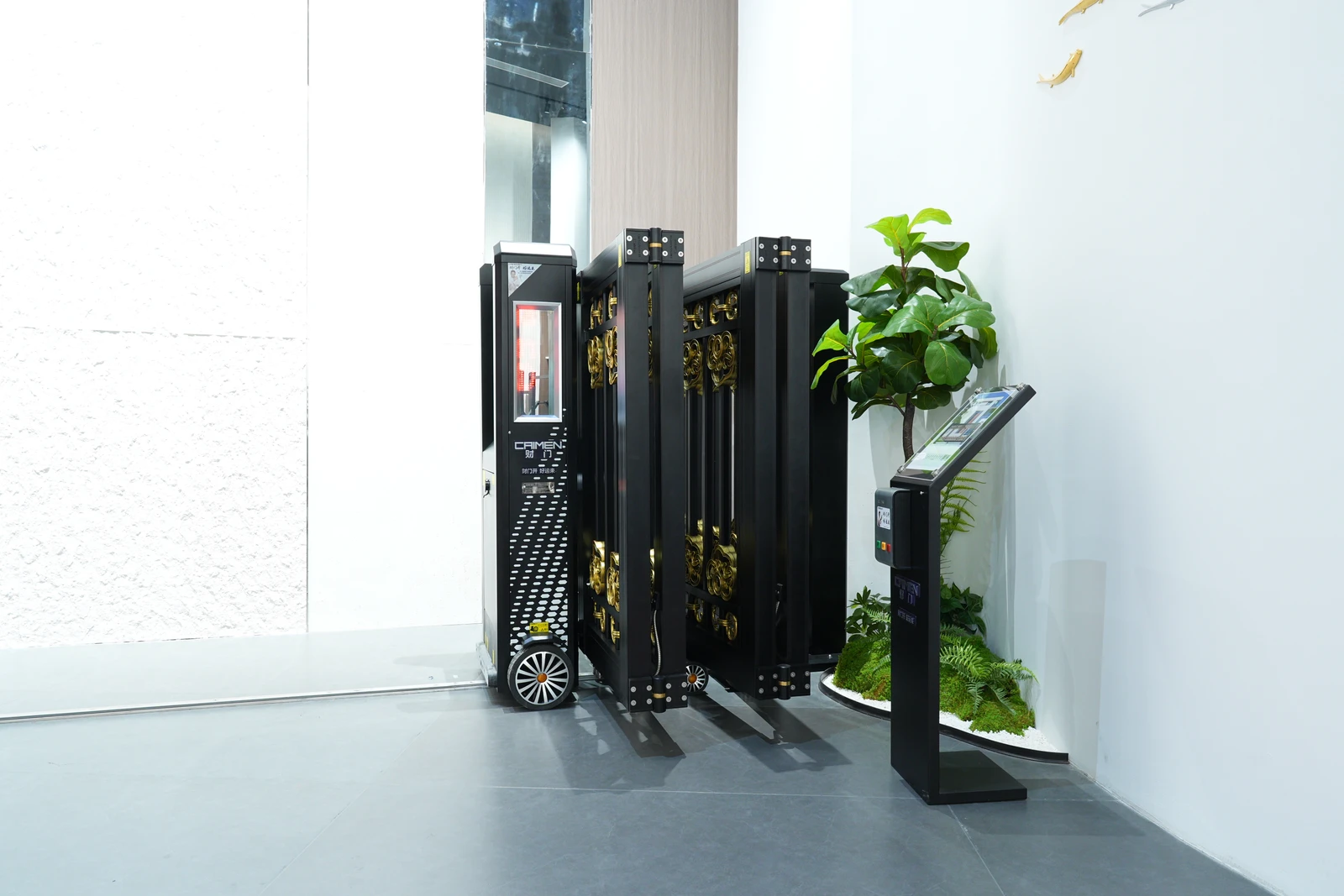

- Space-Saving Folding Leaves
- Connected panels fold beside the entrance, reducing the clearance needed for a full-length swing leaf.
- Upper & Lower Axis Support
- The support arrangement carries the gate loads through the pivot assemblies and keeps the folding leaves aligned during movement.

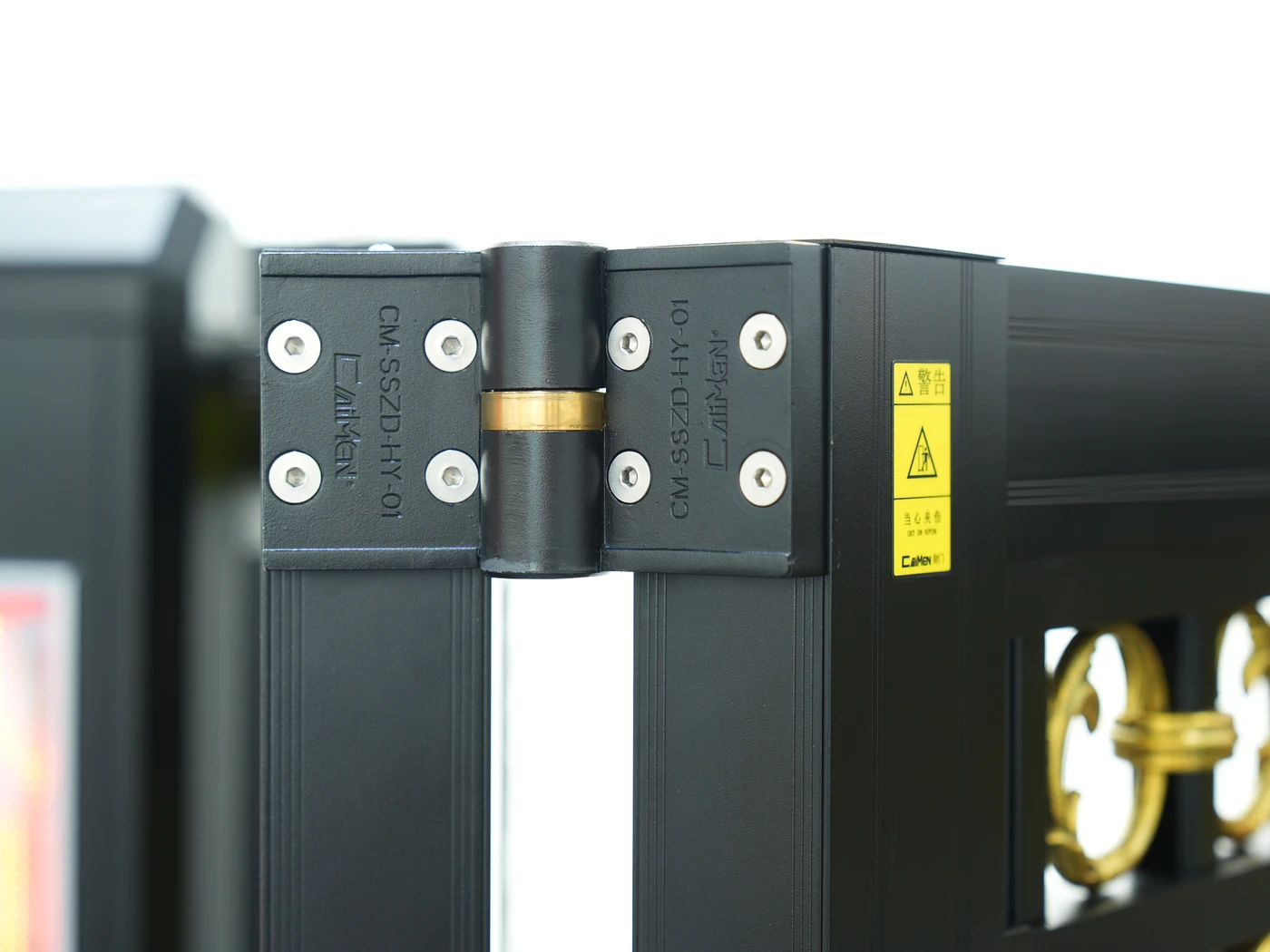

- Hinges & Drive Hardware
- Purpose-built pivot connections and drive components work together to transmit movement between the gate leaves.

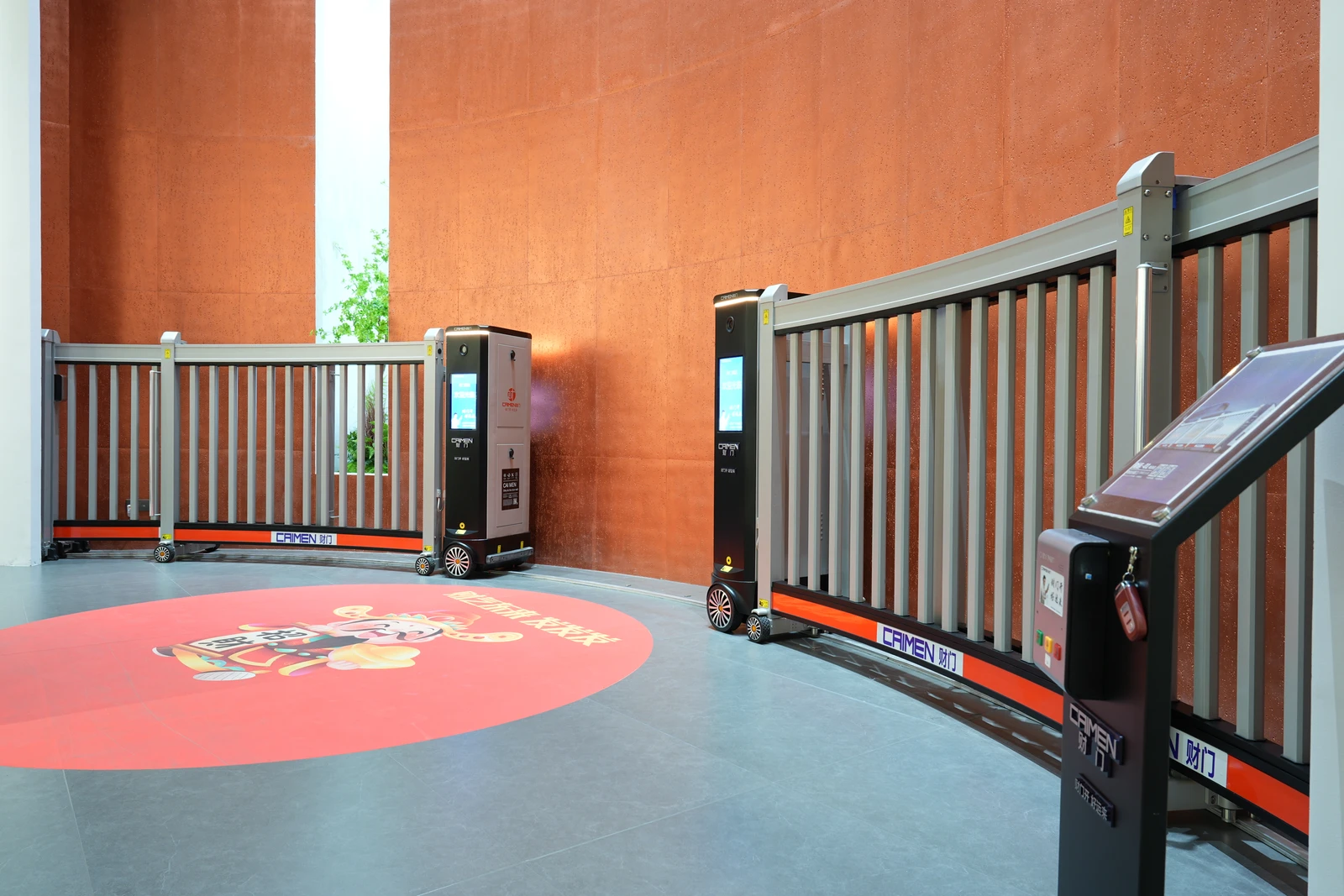

Automatic Control & Safety Protection
We integrate the motor, operating controls and infrared protection into the gate system, with additional access and warning functions available for different entrances.
- Standard Operating Controls
- Motor thermal protection, soft drive, manual clutch, emergency stop and radio remote control are included in the standard configuration.
- Infrared Obstacle Detection
- The standard infrared system detects obstacles in the gate's movement area and works with the controller to stop and reverse movement.
- Access Control & Options
- Compatible control interfaces support mobile access, fingerprint recognition, license plate recognition and vehicle detection. Voice alerts and anti-climbing teeth are available as options.
Bi-Folding Gate Specifications
Explore the aluminum profile dimensions, folding gate structure and operating equipment available for CAIMEN bi-folding gate systems.

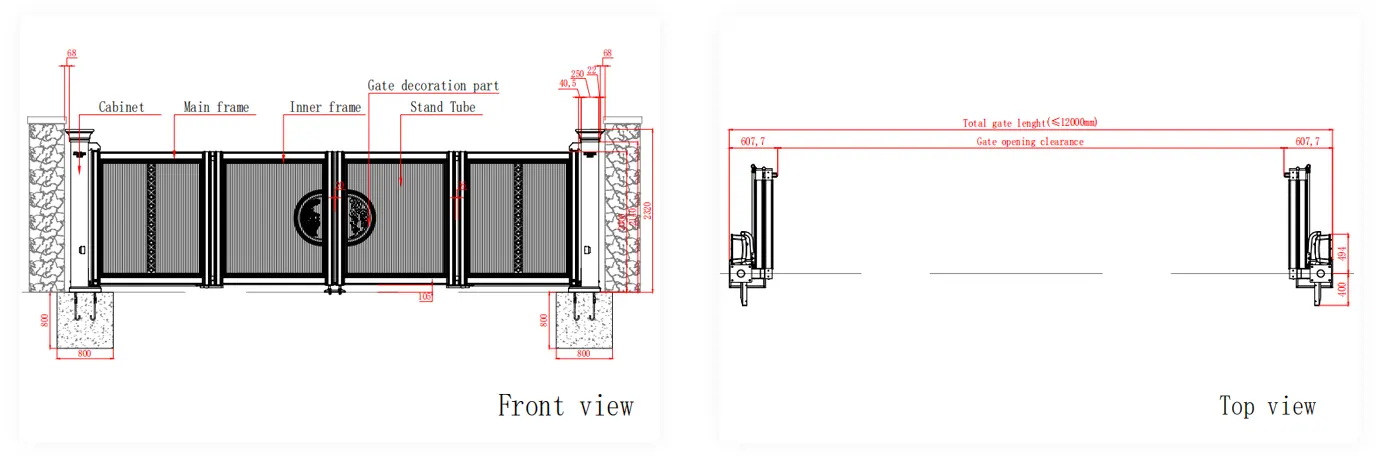

Gate Structure & Installation Drawings
Technical Specifications
Final gate dimensions, structural sections and operating equipment are specified for the approved project configuration.
| Gate Type | Automatic bi-folding gate |
|---|---|
| Gate Construction | Aluminum alloy |
| Drive Housing Material | 6005-T5 aluminum |
| Main Frame Material | 6063-T6 aluminum |
| Inner Frame Material | 6063-T6 aluminum |
| Vertical Members | 6063-T6 aluminum |
| Drive Housing Section | 250 × 200 mm, 4.0 mm wall |
| Main Frame Section | 128 × 90 mm, 3.2 mm wall |
| Inner Frame Section | 110 × 50 mm, 1.5 mm wall |
| Vertical Member Section | 47 × 37 mm, 1.3 mm wall |
| Opening Width | Custom-built |
| Gate Height | Custom-built |
| Infill Options | Vertical tubes, perforated, privacy and louvred panels |
| Surface Treatment | AkzoNobel Interpon powder coating |
| Standard Colour | CM-01 Gray |
| Colour Options | Custom colours available |
| Folding Mechanism | Linked leaves with upper and lower pivot support |
| Motor Thermal Protection | Standard |
| Soft Drive | Standard |
| Manual Clutch | Standard |
| Emergency Stop | Standard |
| Infrared Detection | Standard |
| Radio Remote Control | Standard |
| Voice Alerts | Optional |
| Anti-Climbing Teeth | Optional |
| Access Control | Compatible mobile, biometric, LPR and vehicle detection systems |
Bi-Folding Gates FAQs
Find answers about folding movement, opening clearance and gate configuration, or share your vehicle entrance dimensions and site drawings for review.
How does a bi-folding gate work?
Linked gate panels fold beside the entrance as the gate opens. This reduces the space needed compared with a conventional full-length swing gate.
Why does CAIMEN use aluminum construction?
Aluminum offers lower material weight, strong corrosion resistance and flexible architectural design. We combine structural profiles with dedicated hinges, pivots and drive hardware.
Does a bi-folding gate need opening clearance?
Yes. The folded panels still need clearance beside the entrance, and their movement must be coordinated with walls, vehicles and nearby structures. We establish the required space from the gate dimensions and folding arrangement.
Can the gate size and panel design be customized?
Yes. We manufacture gates to suit the opening and offer vertical bars, perforated panels, privacy infill, louvres and custom colours.
What safety functions are standard?
The standard configuration includes infrared detection, motor thermal protection, soft drive, manual clutch and emergency-stop controls.
Can the gate integrate with our access control system?
Yes. We configure compatible interfaces for license plate recognition, fingerprint readers, mobile access and vehicle detection systems.
What information do you need for a quotation?
Provide the clear opening width, required gate height, available folding clearance and project location. Site drawings, photos and your preferred design will help us prepare the configuration.
