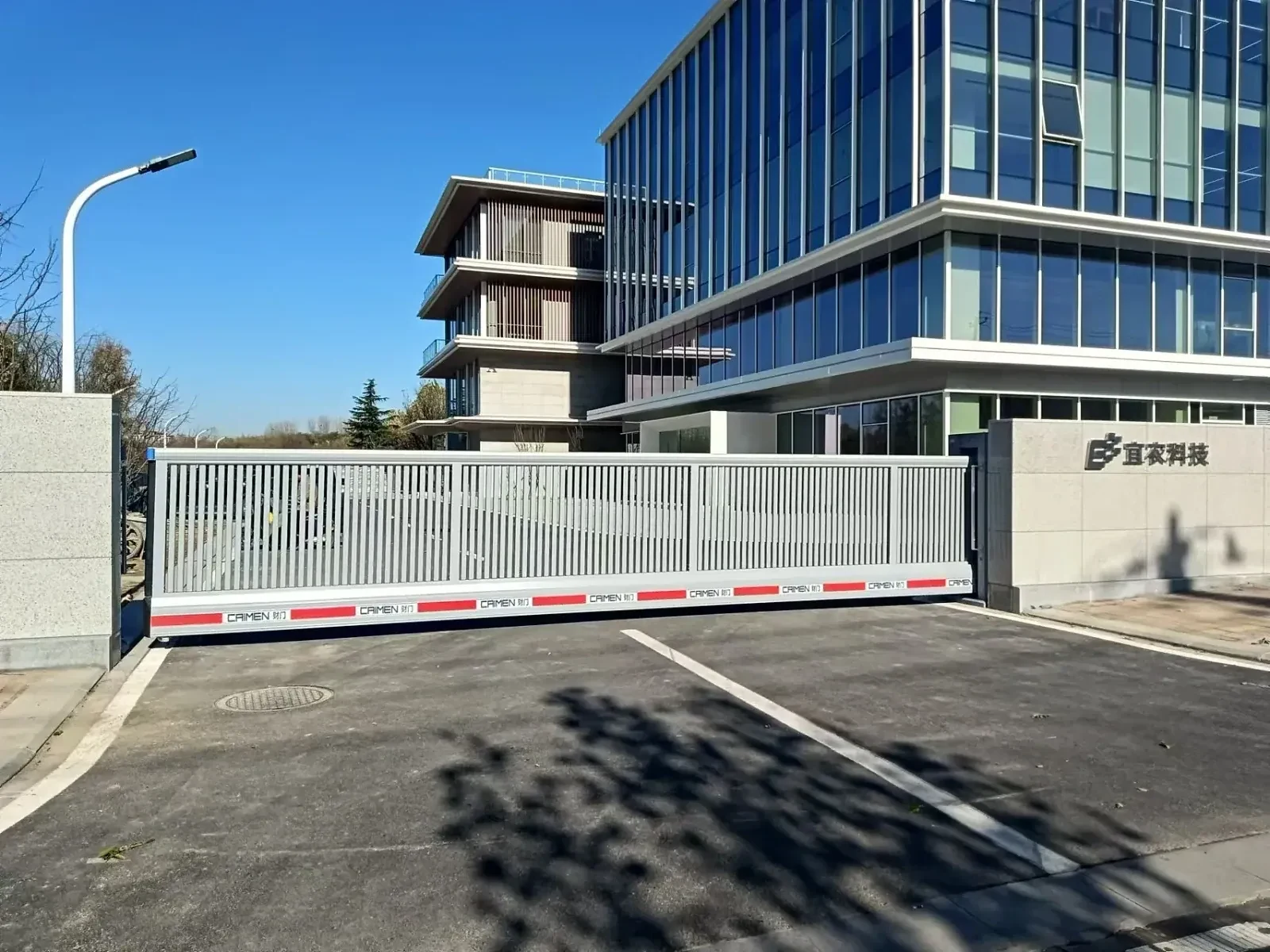

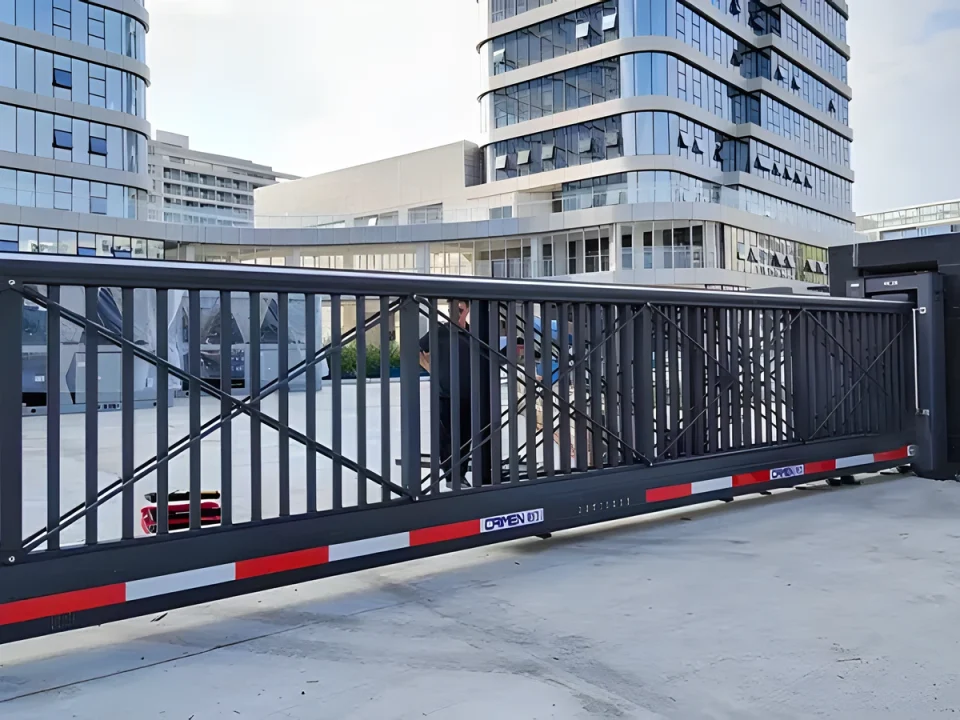

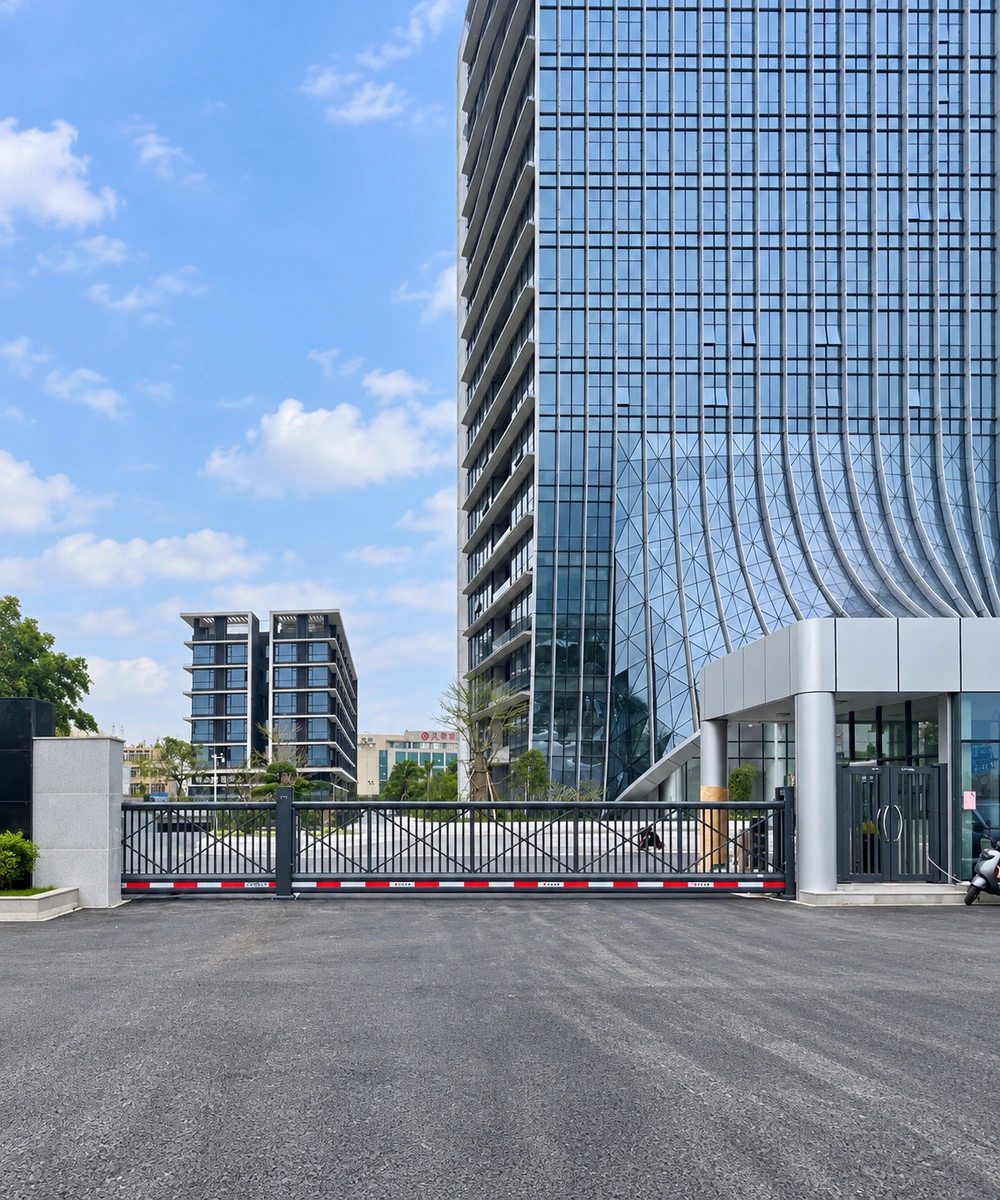

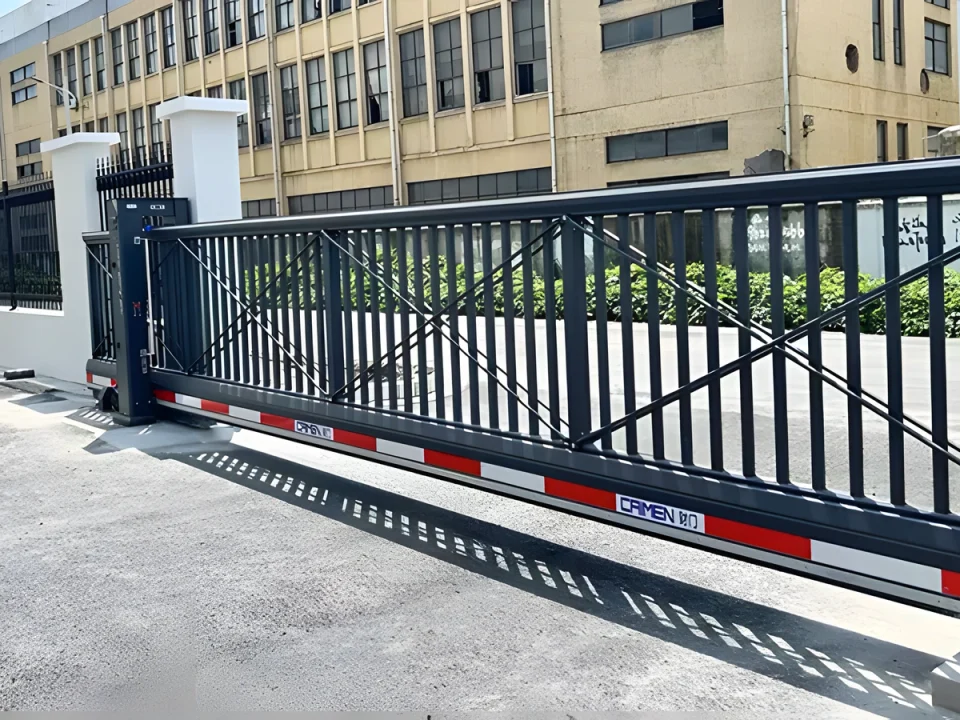

Cantilever Sliding Gates
CAIMEN manufactures aluminum cantilever sliding gates for industrial facilities, commercial properties and residential entrances. Our trackless systems combine engineered aluminum structures with custom gate designs, automated operation and access control.
- Aluminum Construction — Structural 6005-T6 and 6063-T5 aluminum profiles for a lighter, corrosion-resistant gate body.
- Trackless Operation — No ground rail across the driveway, keeping the vehicle path clear.
- Custom Gate Design — Opening width, height, infill and finish tailored to your project.
The CAIMEN Advantage
Our hardware, software and production teams contribute distinct capabilities to automatic entrance systems.
- Hardware Engineering
- We engineer gate structures, mechanical components and automation hardware.
- Software & Automation Development
- Our software R&D team develops control and management functions for intelligent entrance and parking systems.
- Manufacturing & Assembly
- Our production team supports fabrication, assembly and product preparation across our manufacturing operations.

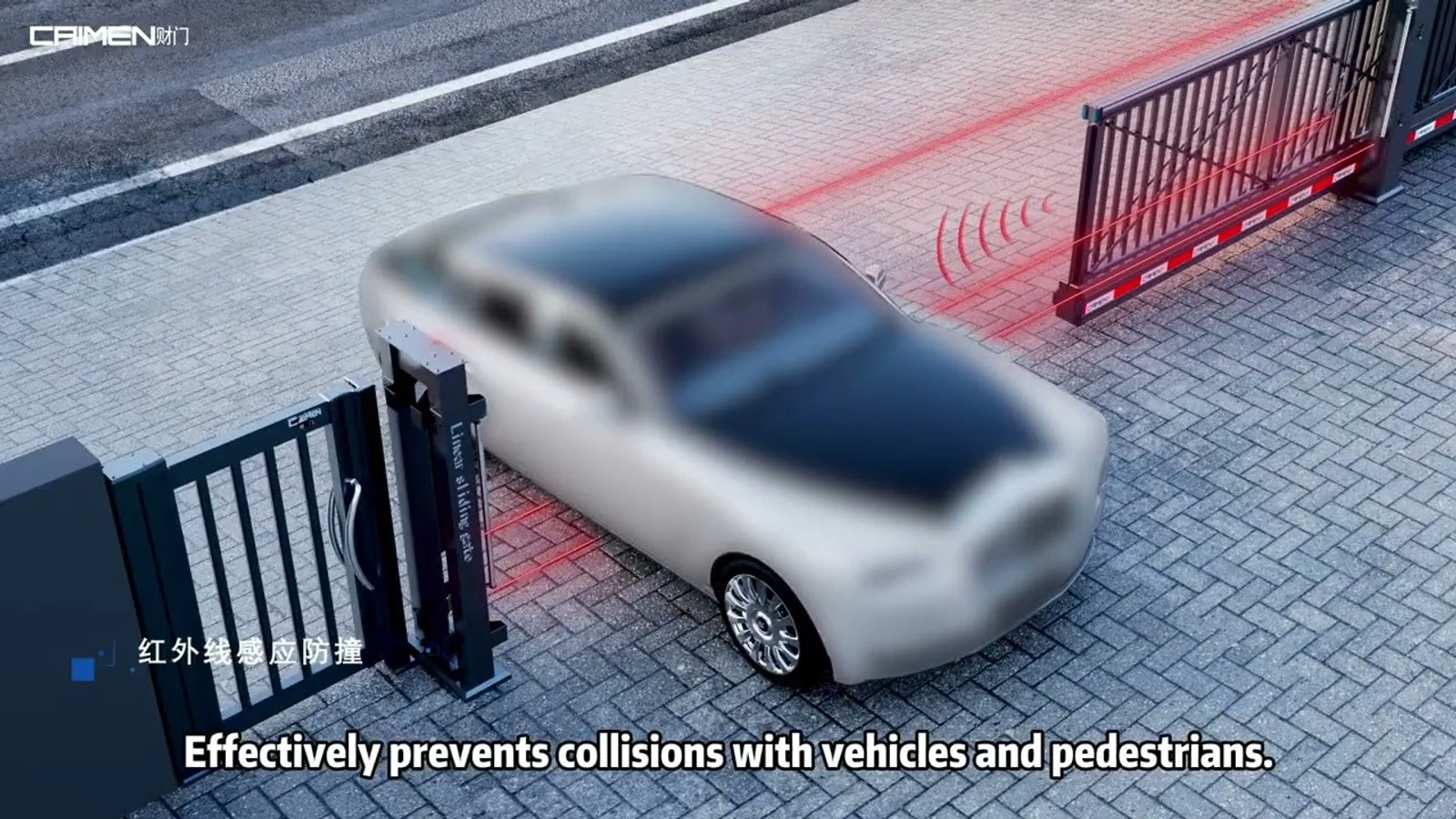

See the Cantilever Gate in Motion
Watch how the gate moves above the driveway, supported by the cantilever beam and carriage system beside the entrance.
YouTube loads only with Optional Media permission.
Engineered Aluminum Construction
We build our cantilever gates around structural aluminum profiles that combine lower material weight, corrosion resistance and flexible architectural design.
- 6005-T6 Cantilever Beam
- Four aluminum beam profiles allow us to match the gate's length, height and structural loads.
- 6063-T5 Aluminum Frame
- Aluminum frames and infill sections form the gate body, with steel reinforcement where additional support is required.
- Architectural Finishes
- Powder-coated finishes and custom colours give each gate a clean appearance suited to its surroundings.
Trackless Support & Stability
Our cantilever system supports the moving gate beside the entrance, eliminating the ground rail found in conventional tracked sliding gates.

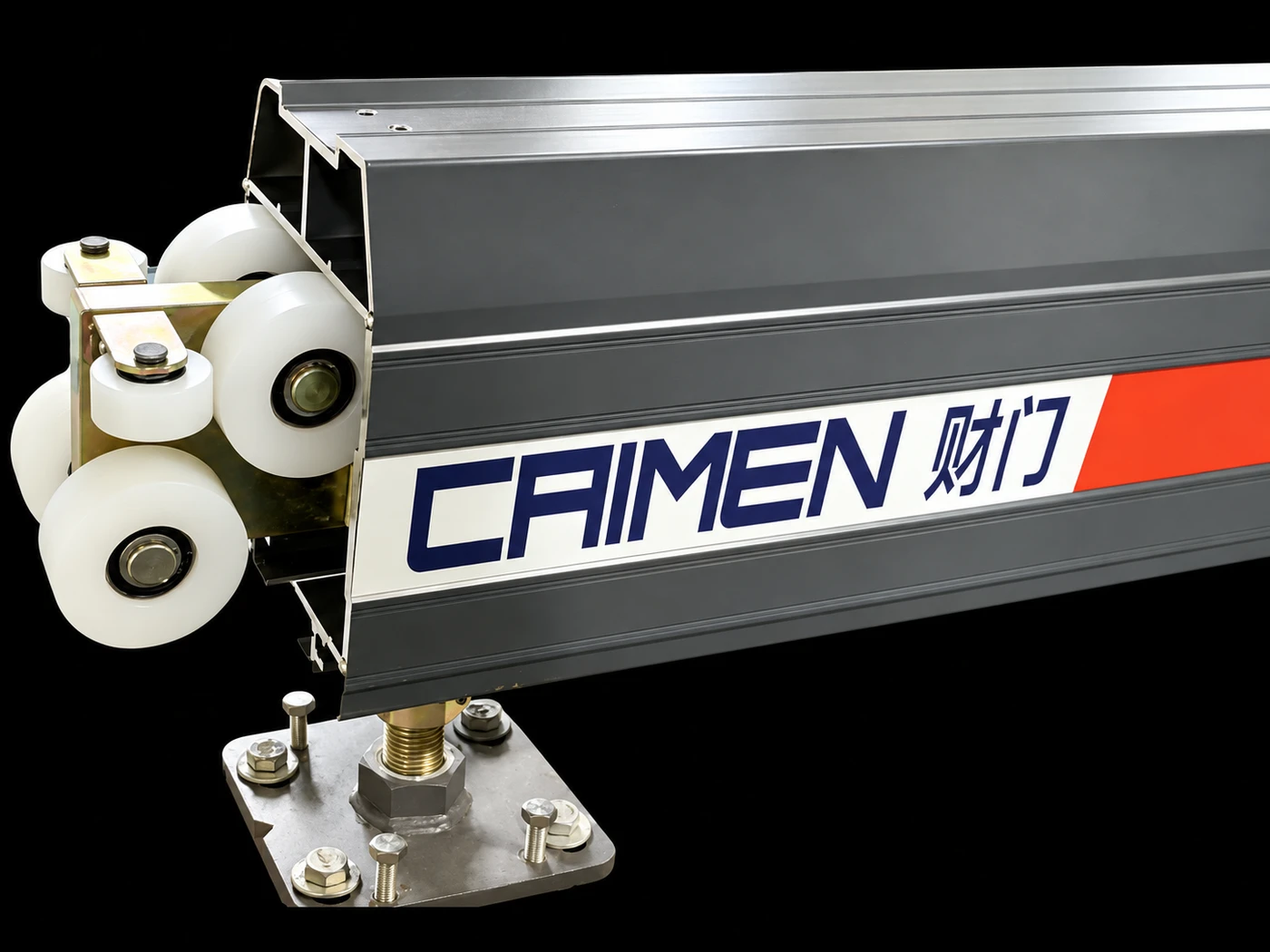

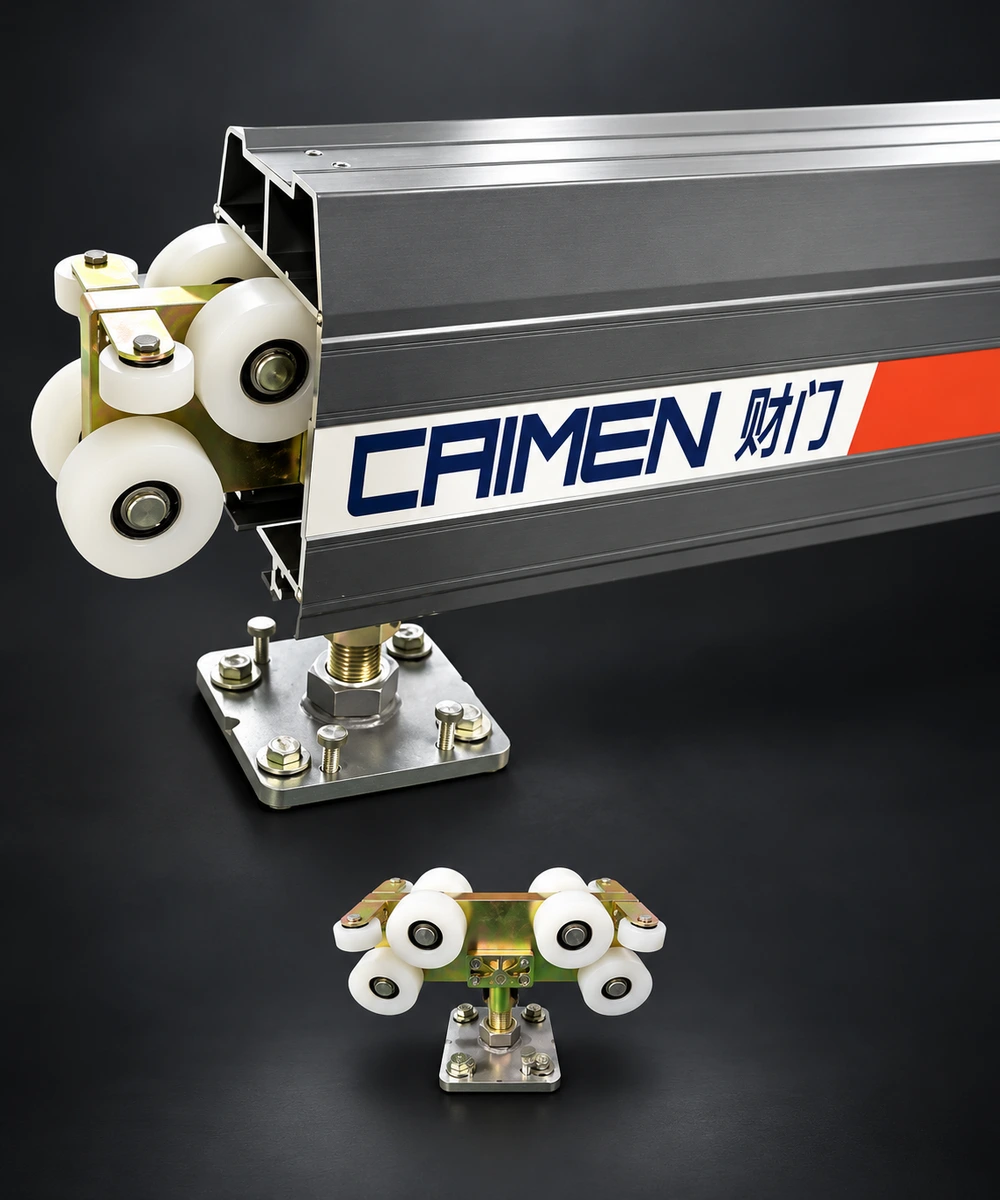

- 12-Wheel Carriage System
- Multi-directional rollers support and guide the cantilever beam throughout gate movement.
- Clear Driveway
- Without a ground track, gravel, leaves and standing debris have fewer places to interfere with gate travel.
- Project-Specific Support
- We design the carriage position, foundation layout and side runback around the gate dimensions and site conditions.
Automation, Access Control & Safety
We configure the drive, controls and protective devices together to provide smooth gate movement and coordinated vehicle access.
- Controlled VFD Drive
- Our available 500 W VFD configuration offers adjustable 18–22 m/min travel speed with controlled acceleration and deceleration.
- Access Control Integration
- Compatible interfaces connect the gate with RFID readers, license plate recognition and third-party access control systems.

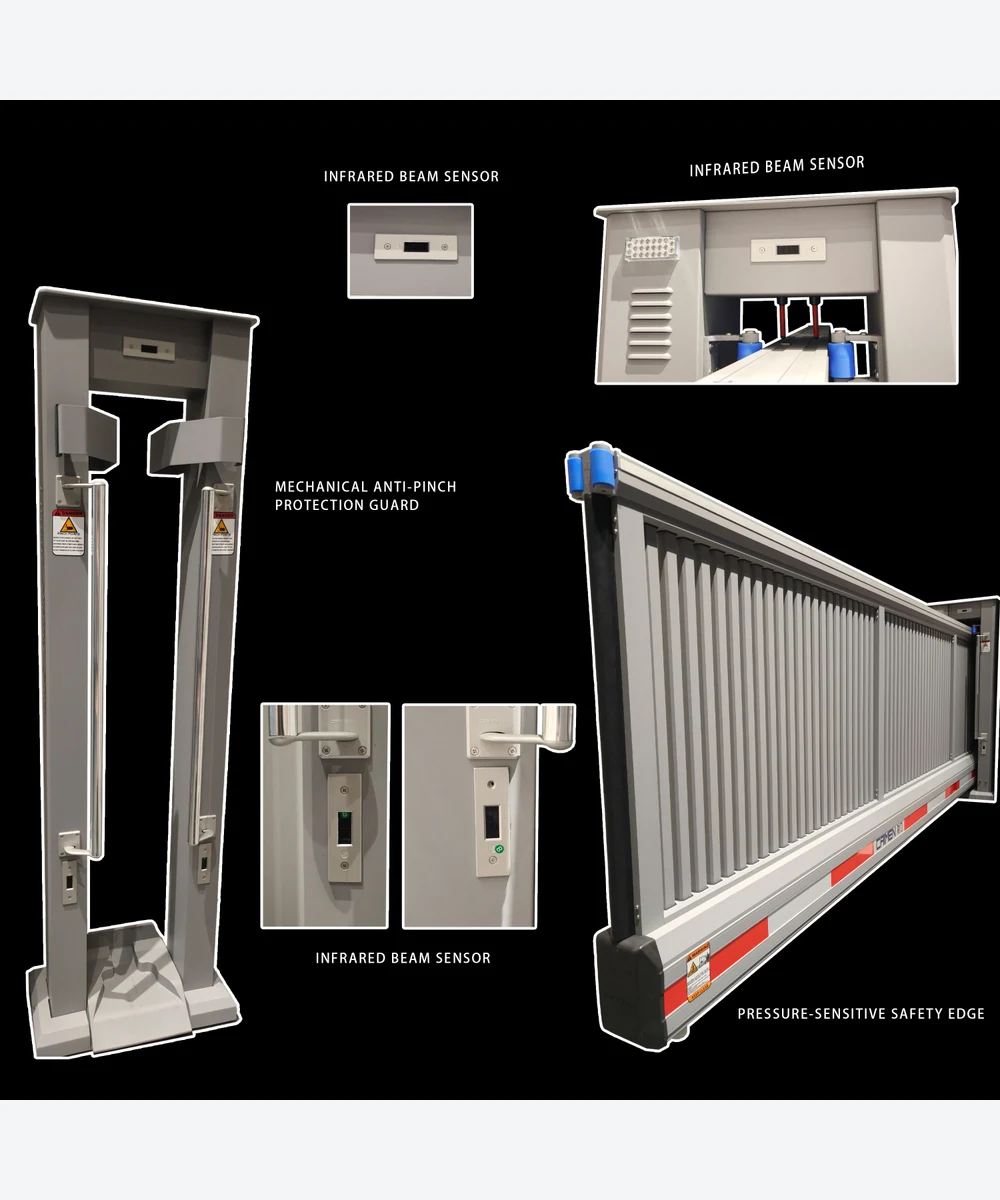

- Safety & Emergency Operation
- Available equipment includes photoelectric sensors, safety edges, emergency-stop controls and manual release.
Cantilever Sliding Gate Specifications
Explore the structural aluminum profiles, installation arrangement and operating specifications of our cantilever gate systems.

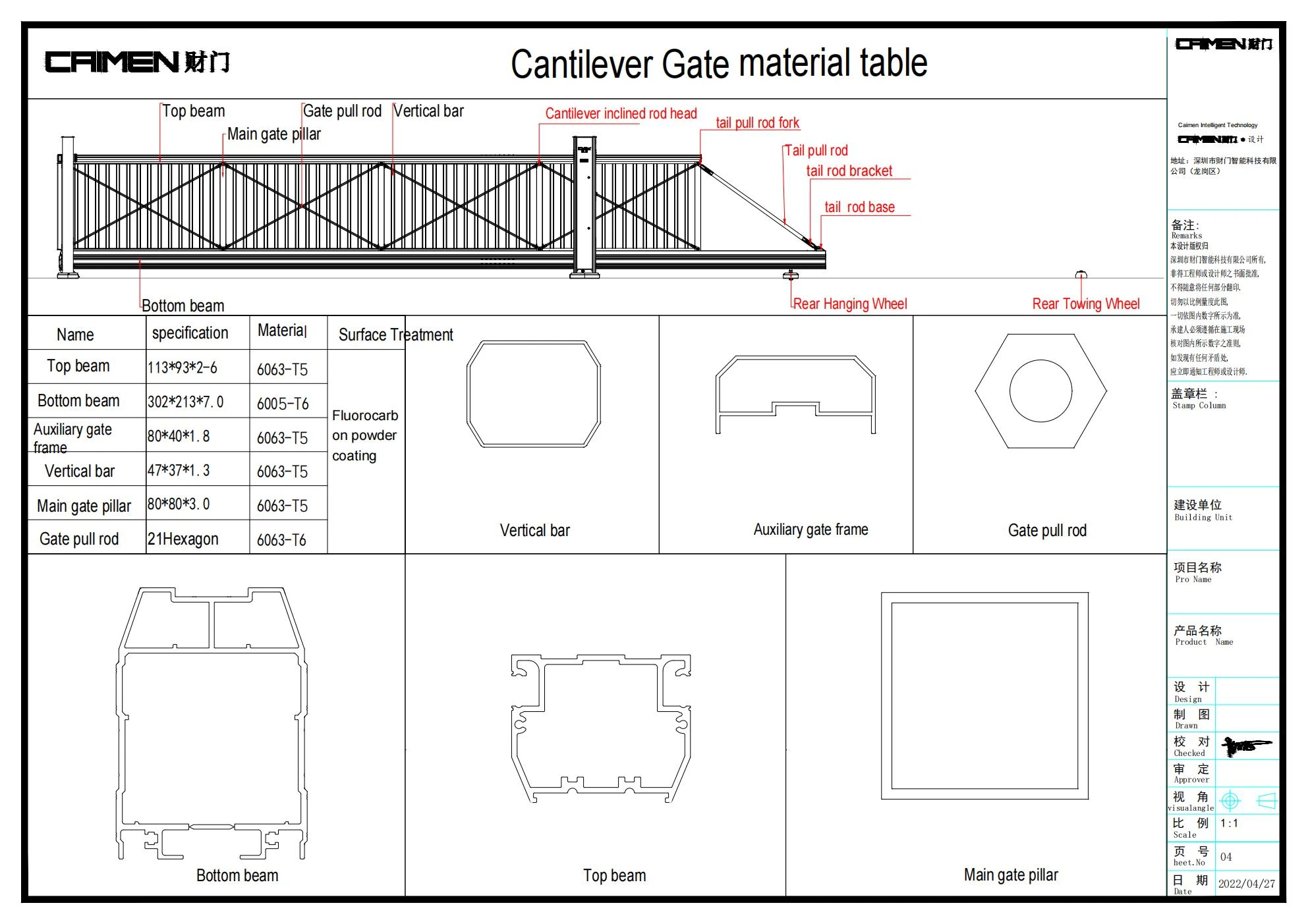

Gate Structure & Installation Drawings
Technical Specifications
Final dimensions, structural details and drive equipment are specified for each gate configuration.
| Gate Type | Trackless cantilever sliding gate |
|---|---|
| Cantilever Beam | 6005-T6 aluminum |
| Beam Options | Four structural profiles |
| Gate Frame & Infill | 6063-T5 aluminum |
| Support System | 12-wheel multidirectional carriage |
| Opening Width | Custom-built |
| Gate Height | Custom-built |

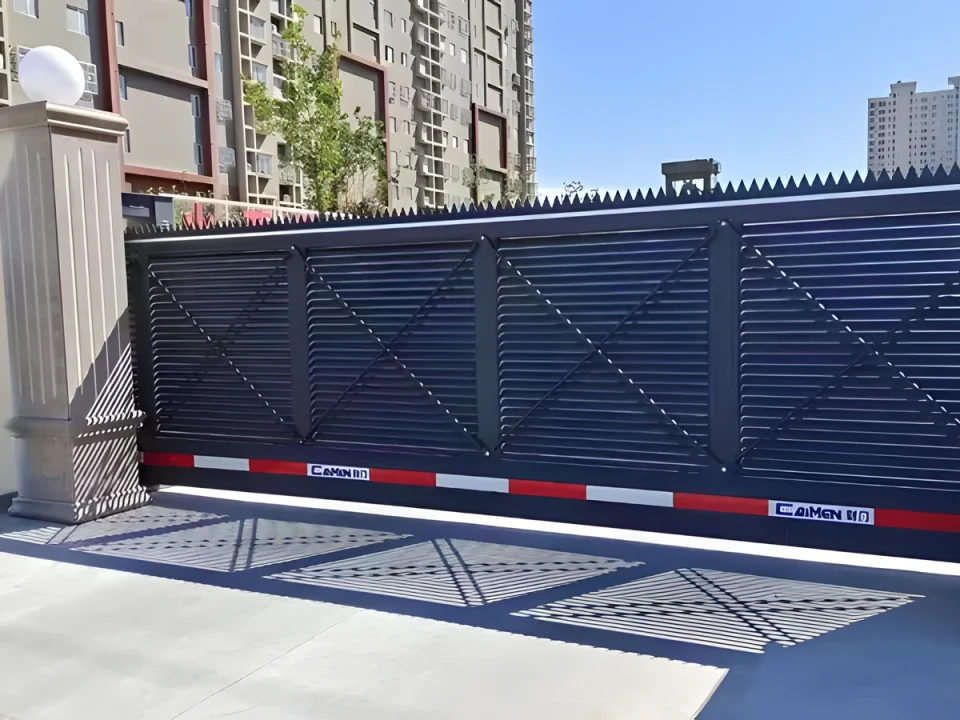

| Infill Options | Open pickets, privacy and decorative designs |
| Surface Finish | Architectural powder coating |
| Colour | Custom RAL colours |
| Automatic Drive | 500 W VFD configuration |
| Operating Speed | 18–22 m/min, adjustable with specified drive |
| Power Supply | 110 / 220 V AC, 50 / 60 Hz options |
| Control Interface | Remote control and dry-contact relay |
| Access Control | RFID, LPR and compatible third-party systems |
| Safety Equipment | Photoelectric sensors, safety edges and emergency controls |
Related Projects
Cantilever Sliding Gates FAQs
Find answers about trackless movement, side space and project configuration, or send your entrance dimensions and site drawings for review.
Why choose an aluminum cantilever gate over steel?
Aluminum offers lower material weight, strong corrosion resistance and flexible architectural design. We combine these advantages with engineered beams, steel reinforcement and a dedicated carriage system.
Does a cantilever sliding gate need a ground track?
No. The gate travels through carriage assemblies beside the opening, keeping the driveway free of a continuous ground rail.
How much side space does the gate require?
The gate needs sufficient runback space for the moving leaf and its supporting tail. We determine the required space from the opening width and gate structure.
Can the gate connect to our existing access control system?
Yes. Our controllers support compatible RFID readers, license plate recognition, keypads and third-party access control equipment.
What safety devices are available?
We offer photoelectric sensors, safety edges, emergency-stop controls and manual release. The equipment is configured around the gate and entrance layout.
What information do you need for a quotation?
Provide the clear opening width, gate height, available side space and project location. Site drawings, photographs and access control requirements help us prepare the configuration.
