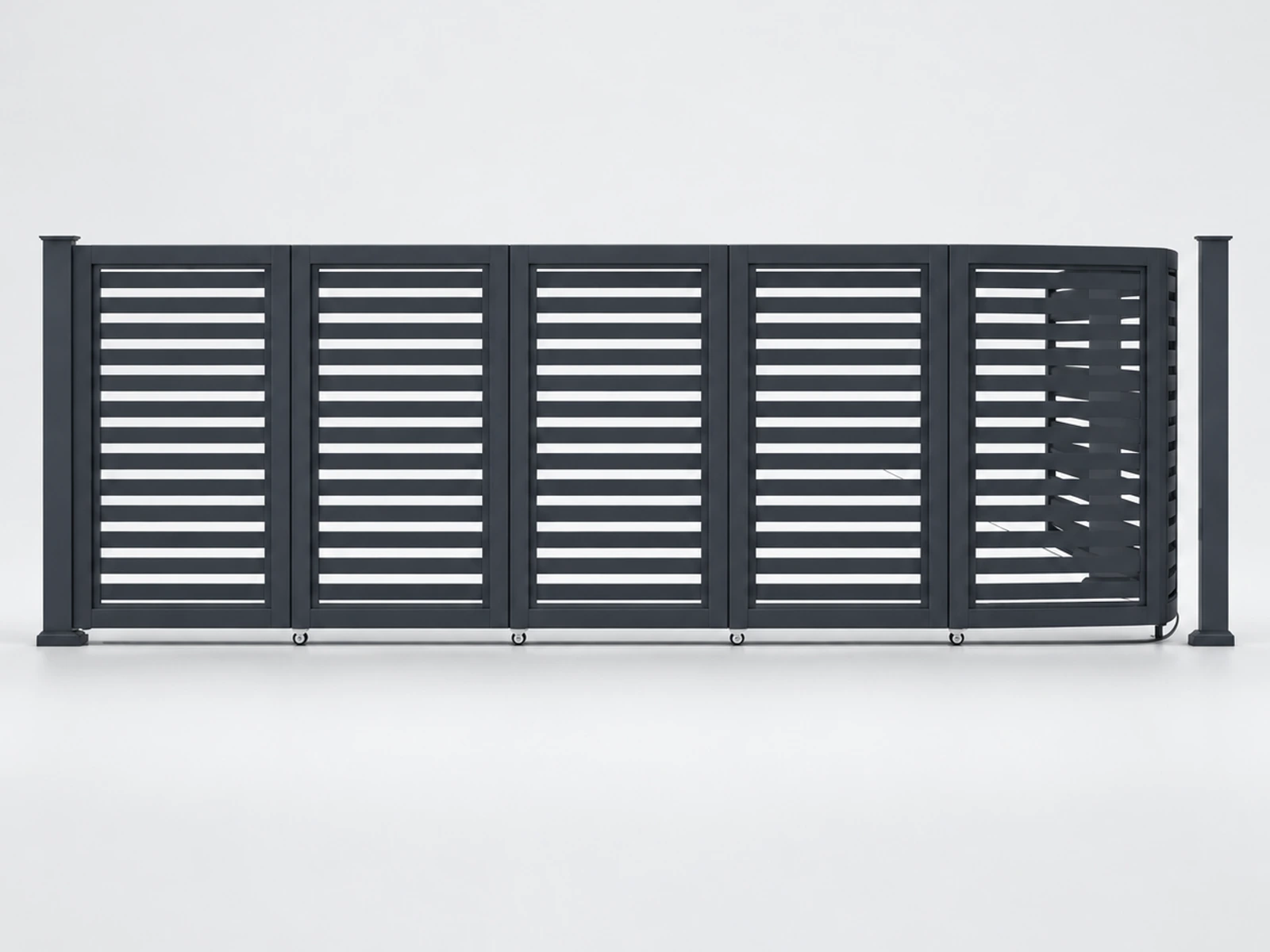

Sectional Sliding Gates

CAIMEN manufactures aluminum sectional sliding gates for residential, commercial and industrial entrances with limited side space. Hinged gate panels follow a curved track around the corner, allowing the gate to retract along a boundary wall instead of requiring a long, straight runback.

Space-Saving Corner Movement — Segmented gate panels turn around the corner and retract beside the entrance.
Engineered Aluminum Construction — 6005-T5 and 6063-T6 aluminum profiles with corrosion-resistant architectural finishes.
Custom Gate Layout — Gate dimensions, curved track arrangement, panel design and colours tailored to the site.
Integrated Automation — Motorized operation with compatible access control and optional safety equipment.

View Specifications

The CAIMEN Advantage

Our engineering and production teams work together on gate structures, automation systems and project-specific manufacturing.

30+ Hardware R&D Professionals: Engineering gate structures, mechanical components and automation hardware.
20+ Software R&D Professionals: Developing control functions and software for intelligent entrance and parking systems.
200+ Production Personnel: Supporting fabrication, assembly and product preparation across our manufacturing operations.

Discover CAIMEN →

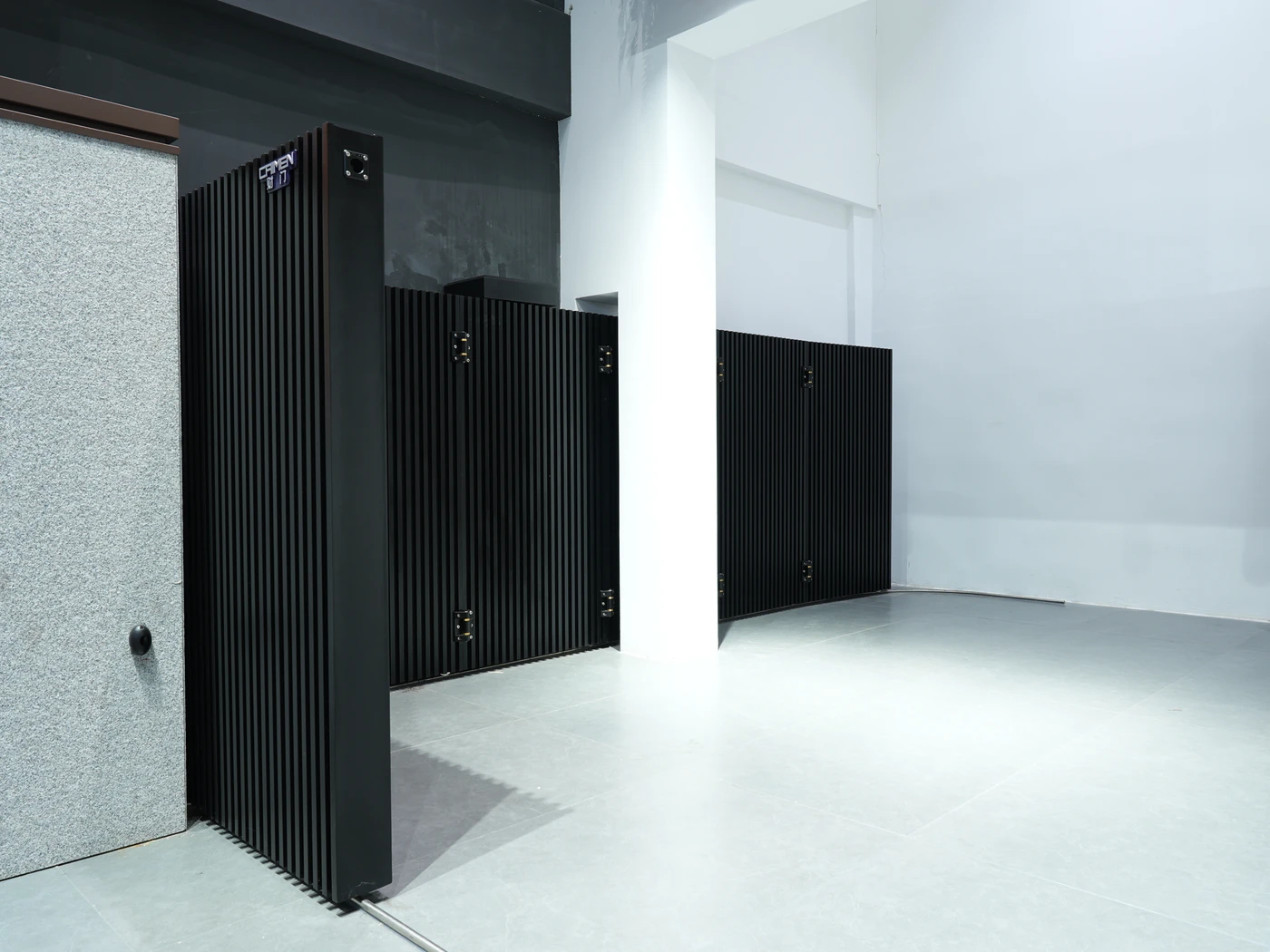

Sectional sliding gate panels following a corner in the CAIMEN showroom.

Curved-Track Sectional Movement

Our sectional gate uses connected aluminum panels that travel along a guided curved path, allowing the gate to turn beside the entrance and retract along the adjoining wall.

Corner-Tracking Design: A curved guide track directs the linked gate panels around the corner, connecting the entrance opening with the side storage area.
Linked Gate Sections: Hinged panel connections allow the gate to change direction as it moves while maintaining a continuous gate leaf across the opening.
Compact Side Storage: The gate parks along the boundary wall, reducing the straight runback required by conventional sliding gate systems.

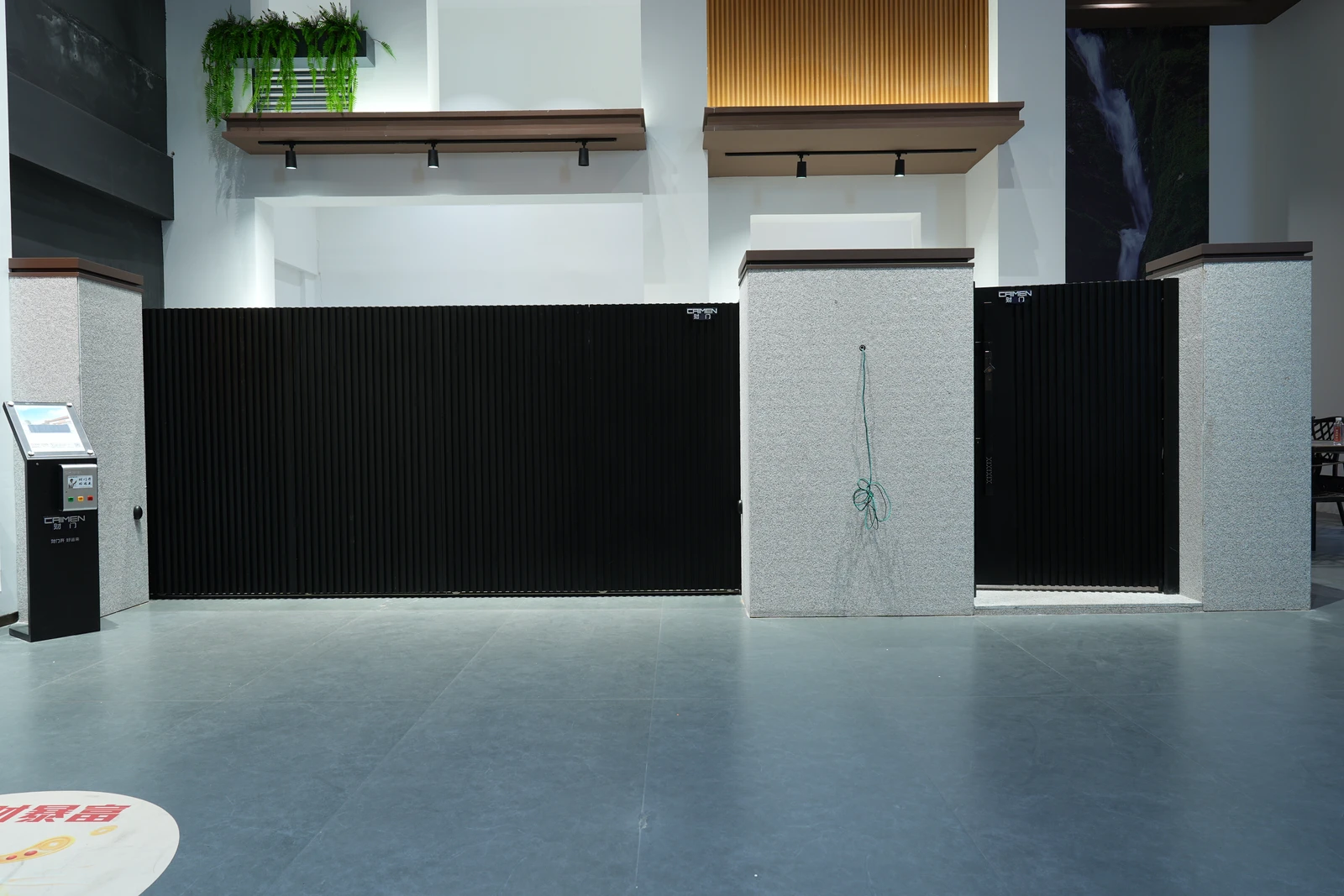

CAIMEN sectional gate panels closed across the showroom opening.

Aluminum Structure & Custom Design

We manufacture our sectional gates with structural aluminum profiles and customizable panels, combining outdoor durability with the flexibility to match different entrances.

6005-T5 Main Frame: The main frame uses 6005-T5 aluminum profiles to support the gate structure and its guided movement.
6063-T6 Inner Frame & Tubes: 6063-T6 aluminum forms the inner frames and upright members, supporting the connected gate sections.
Architectural Finishes: Fluorocarbon powder coating, custom colours and panel designs allow the gate to coordinate with the surrounding property.

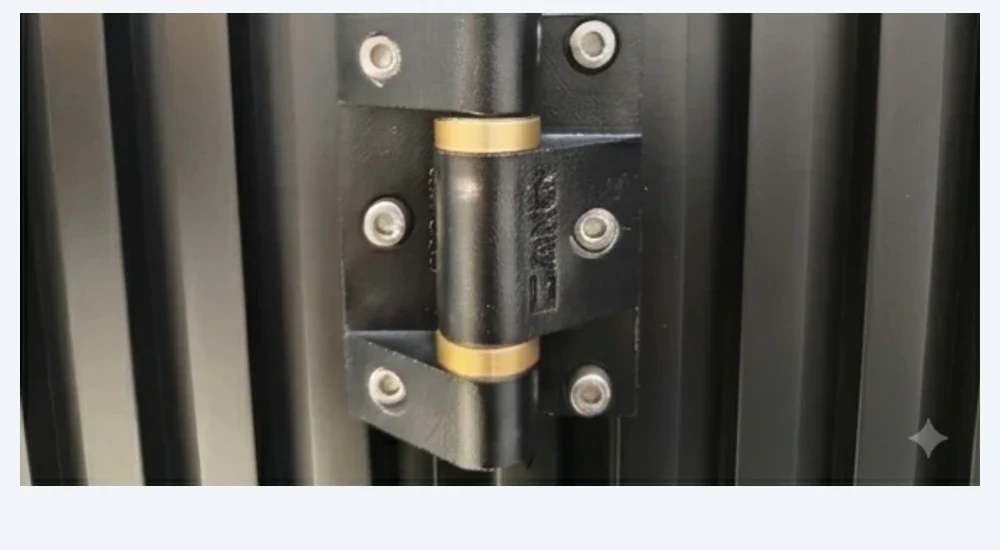

Close view of the connecting hinge on a CAIMEN sectional gate.

Automatic Control & Access Integration

We integrate the motor drive and operating controls with the curved-track gate system, configuring access methods and protective devices around the entrance layout.

Motorized Gate Movement: The drive system moves the connected gate panels along the guided track, coordinating travel through the straight and curved sections.
Flexible Access Control: Available interfaces support remote controls, keypads, fingerprint readers, mobile access and compatible third-party systems.
Safety & Site Coordination: Obstacle detection, warning devices and emergency controls are selected for the gate's travel path, corner clearance and operating requirements.

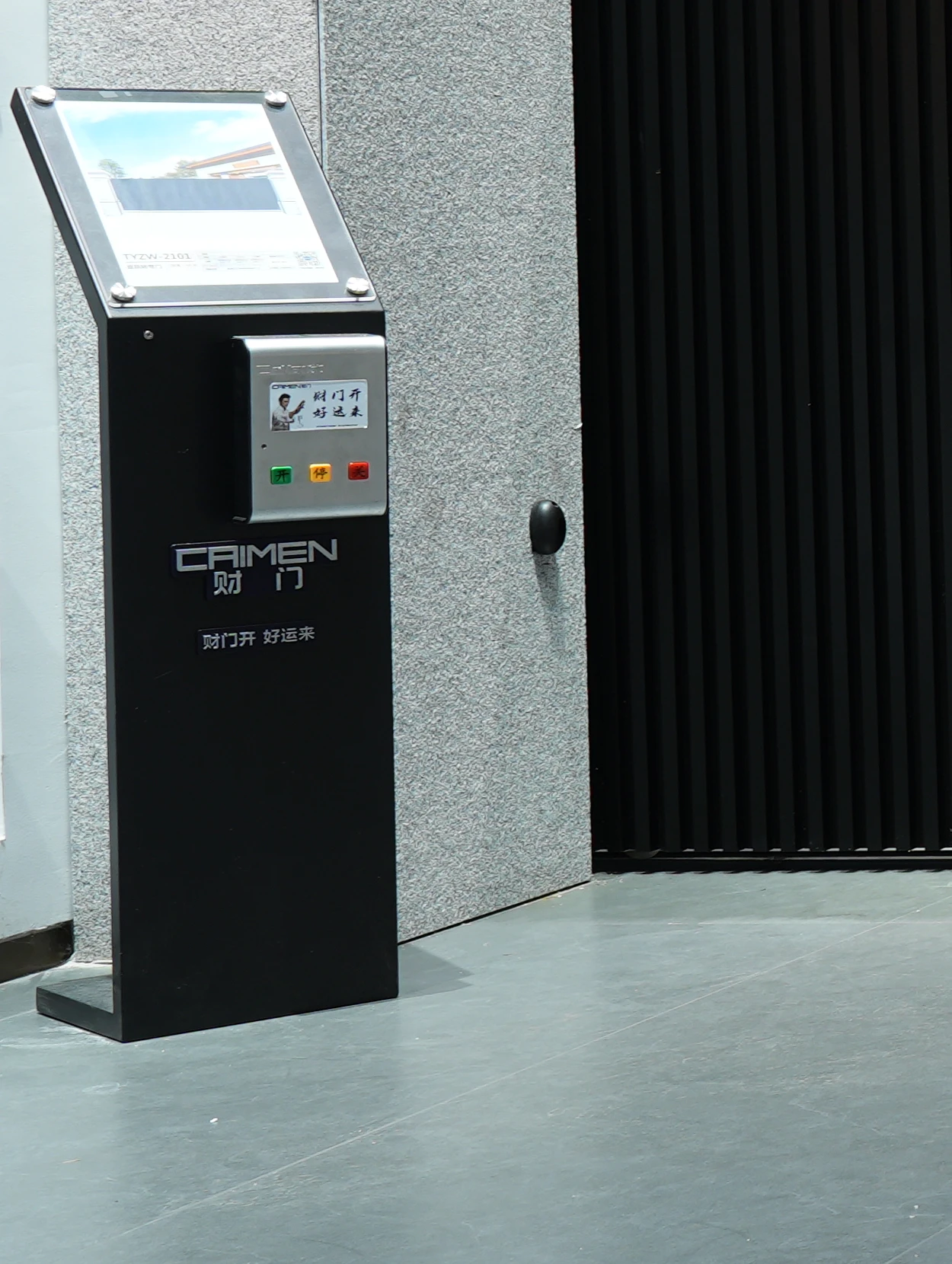

Entrance control terminal beside a CAIMEN sectional gate.

Sectional Sliding Gate Specifications

Explore the aluminum frame sections, curved-track layout and available operating configurations for our sectional sliding gate systems.

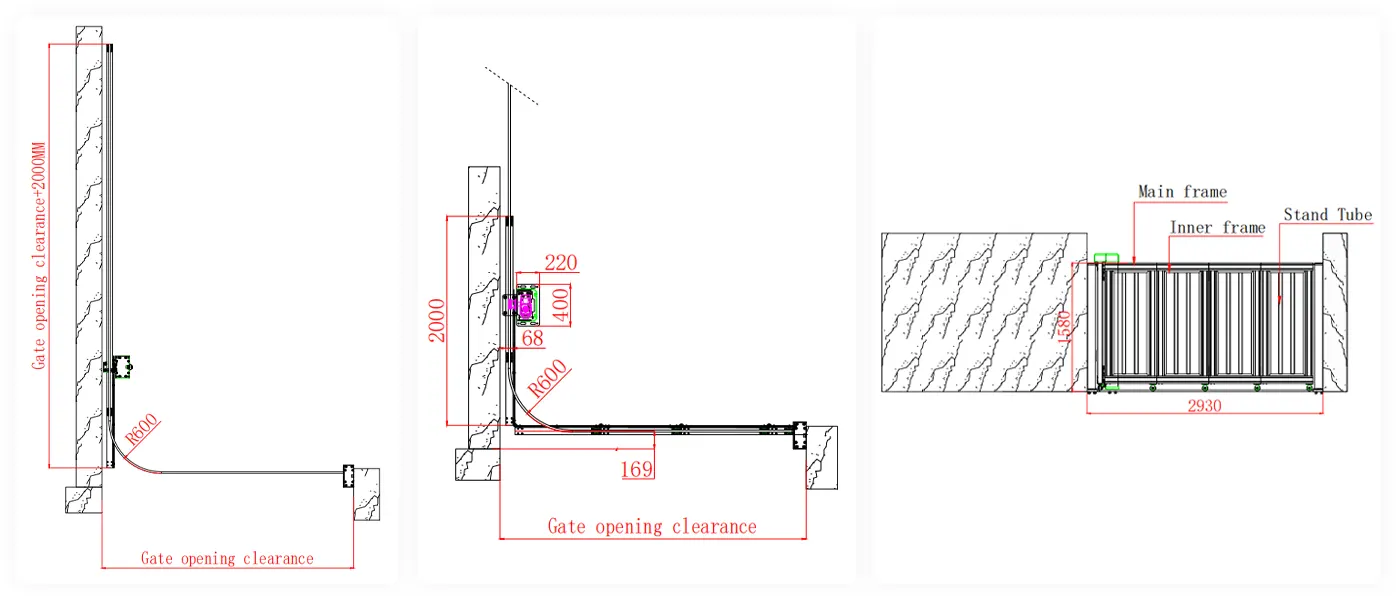

Gate Structure & Curved-Track Drawings

Technical Specifications

Final gate dimensions, track geometry, panel arrangement and operating equipment are specified for each project.

Sectional Sliding Gates technical specifications
Gate Type	Automatic sectional sliding gate
Movement	Curved-track sliding movement
Gate Structure	Linked aluminum panels
Featured Gate Height	1.6 m
Opening Width	Custom-built
Gate Layout	Straight travel with a curved corner section
Storage Arrangement	Along the adjoining boundary wall
Main Frame Material	6005-T5 aluminum
Main Frame Section	95 × 63 mm, 3.0 mm wall
Inner Frame Material	6063-T6 aluminum
Inner Frame Section	59 × 27 mm, 1.8 mm wall
Upright Tube Material	6063-T6 aluminum
Upright Tube Section	47 × 37 mm, 1.3 mm wall
Surface Treatment	Fluorocarbon powder coating
Standard Colour	CM-01 Gray
Colour Options	Custom colours available
Panel Designs	Customizable infill and decorative styles
Operating System	Motorized sliding drive
Track Arrangement	Configured for the entrance and corner layout
Access Control Options	Remote, keypad, fingerprint and mobile access
Additional Integration	Compatible third-party controllers and LPR systems
Safety Options	Compatible obstacle detection and warning equipment
Installation Requirements	Track alignment, corner clearance and suitable support foundations

Sectional Sliding Gates FAQs

Find answers about linked gate sections, corner layouts and guided movement, or send your site drawings and dimensions for review.

How does a sectional sliding gate work?

Connected gate panels travel along a guided track and turn around the corner. The gate then retracts along the adjoining wall, clearing the entrance.

How is it different from a conventional sliding gate?

A conventional sliding gate usually needs a long straight runback. Our sectional gate follows a curved path, allowing the moving panels to use available space around the corner.

Does the gate require a curved track?

Yes. The curved guide track directs the connected panels through the corner. We design its arrangement around the entrance and available storage space.

Can the gate dimensions and panel design be customized?

Yes. We manufacture custom gate dimensions, aluminum panel designs, colours and finishes to suit the opening and surrounding architecture.

What information is needed to plan the corner layout?

We need the opening width, available wall length, corner space and site conditions. Photos or drawings help us establish the gate's travel path.

Can the gate connect to an access control system?

Yes. We configure compatible remote controls, keypads, fingerprint readers, mobile access and other control interfaces for the selected operator.

What information do you need for a quotation?

Provide the opening width, required gate height, available side space, corner geometry and project location. Include site photos and access control requirements.
